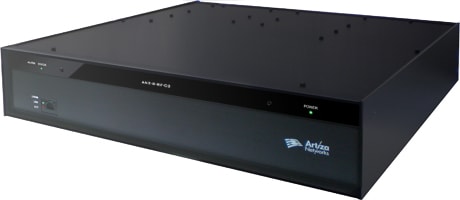

Figure 1 : RF Unit (ANZ-S-RF-02)

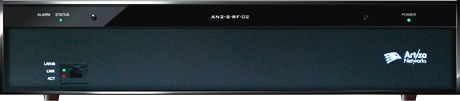

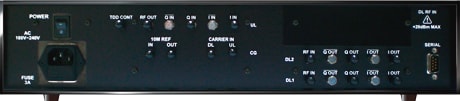

Figure 2 : RF Unit (ANZ-S-RF-02) Front and Rear Panel
RF Unit (ANZ-S-RF-02) Specification
| Parameter | Description | |
|---|---|---|
| RF Characteristics | Carrier Frequency | 698 MHz to 3,800 MHz |
| Occupied Bandwidth | Maximum 20 MHz | |
| Output Power | Output Power -40 to +23 dBm | |
| Input Power | -70 to 0 dBm Absolute Rating +20dBm | |
| Internal Reference Clock | 10MHz ±1ppm | |
| Radio Frequency | Interface | TX: Maximum 4 ports RX: Maximum 8 ports 50Ω SMA Connector |
| Baseband | Optical data link, 2.5 or 9.8Gbps Maximum 4 links CPRI Compliant |
|
| Controller | 10/100/1000BASE-T | |
| IQ Capture Memory | 4 GB (Maximum recording time is 16 seconds total, shared with all ports) | |
| General | Rated Current | 3A 250V |
| Input Voltage | 100VAC to 240VAC 47Hz～63Hz | |
| Operating Environment | Temperature: +10℃ to +40℃ Humidity: 30 to 80% (No dew fall) |
|
| Dimensions | 133×430×430 mm (H×W×D)) | |
| Weight | Approx. 16 kg (Maximum configuration) | |
| Power | Consumption Approx. 150 W (Maximum configuration) | |
| Compliance | RoHS, VCCI-A | |
| Parameter |
Description |
|---|---|
| RF Characteristics Carrier Frequency |
698 MHz to 3,800 MHz |
| RF Characteristics Occupied Bandwidth |
Maximum 20 MHz |
| RF Characteristics Output Power |
Output Power -40 to +23 dBm |
| RF Characteristics Input Power |
-70 to 0 dBm Absolute Rating +20dBm |
| RF Characteristics Internal Reference Clock |
10MHz ±1ppm |
| Interface Radio Frequency |
TX: Maximum 4 ports RX: Maximum 8 ports 50Ω SMA Connector |
| Interface Baseband |
Optical data link, 2.5 or 9.8Gbps Maximum 4 links CPRI Compliant |
| Interface Controller |
10/100/1000BASE-T |
| IQ Capture Memory |
4 GB (Maximum recording time is 16 seconds total, shared with all ports) |
| General Rated Current |
3A 250V |
| General Input Voltage |
100VAC to 240VAC 47Hz～63Hz |
| General Operating Environment |
Temperature: +10℃ to +40℃ Humidity: 30 to 80% (No dew fall) |
| General Dimensions |
133×430×430 mm (H×W×D)) |
| General Weight |
Approx. 16 kg (Maximum configuration) |
| General Power |
Consumption Approx. 150 W (Maximum configuration) |
| General Compliance |
RoHS, VCCI-A |
